Off-Road Tyre Tread Explained: Blocks, Grooves, Sipes, Lugs, Voids & More
Whether you're choosing tyres for a working 4x4, pickup, off-road van, camper, SUV or dedicated off-roader, the tread pattern can tell you a huge amount about what a tyre has actually been designed to do.
At first glance, an aggressive 4x4 tyre can simply look like a collection of chunky pieces of rubber. Look more closely, however, and you'll find tread blocks, grooves, sipes, shoulder lugs, tread voids, stone-release features and wear indicators all working together.
And they're certainly not there just to make an off-road tyre look aggressive.
Their size, shape, depth and position influence how a tyre behaves on wet roads, gravel tracks, grass, rock, loose surfaces and, of course, mud.
Understanding these features also makes the differences between All-Terrain (A/T), Cross/Extreme-Terrain (X/T), Rugged-Terrain (R/T) and Mud-Terrain (M/T) tyres much easier to understand.
So, let's take a closer look at the anatomy of an off-road tyre.
The Anatomy of a 4x4 & Off-Road Tyre Tread
Tread Blocks – The Building Blocks of the Tyre
The raised sections of rubber making up the tread pattern are called tread blocks.
When the tyre rolls across a surface, these blocks form much of the contact between tyre and terrain. Their shape, size, spacing and arrangement can vary enormously.
An All-Terrain tyre will generally have a comparatively dense arrangement of blocks because it still needs to spend considerable time on tarmac.
A more aggressive off-road tyre typically uses larger blocks separated by wider spaces. Those blocks provide substantial edges capable of interacting with loose surfaces, while the spaces between them give displaced material somewhere to go.
You can see this progression particularly well within the Roadcruza range.
The Roadcruza RA1100 A/T uses a comparatively dense tread pattern designed to balance road use with off-road traction. Roadcruza positions the RA1100 as a 50% on-road / 50% off-road All-Terrain, with a cut-resistant compound and block design intended to help reduce damage on rougher road and trail conditions.
Move through the RA7000 X/T and RA8000 R/T towards the RA3200 M/T and the tread becomes progressively more off-road orientated. Roadcruza itself describes those four patterns respectively as All Terrain, Cross Terrain, Rugged Terrain and Mud Terrain.
Grooves – The Channels Between the Blocks
The channels separating the tread blocks are generally referred to as grooves.
They're every bit as important as the rubber surrounding them.
On wet tarmac, grooves provide routes through which water can be displaced from beneath the tyre.
Off-road, they have another important job.
Mud, soil, gravel and other loose material need somewhere to go as the tyre presses into the ground. A tread pattern with very little open space can become packed with material on particularly soft terrain.
An aggressive off-road tread therefore tends to create substantially more open space between its blocks.
Which brings us to one of the most useful terms when comparing off-road tyres.
What Is Tyre Void Ratio?
The void ratio describes the relationship between the open areas of a tyre's tread and the areas occupied by rubber.
Put very simply:
More rubber + smaller gaps = lower void ratio
Larger gaps + more open tread = higher void ratio
Neither is automatically "better".
A relatively dense tread provides more continuous rubber across the tread face, something that becomes important when a tyre spends substantial amounts of time on the road.
Drive into deep mud, however, and large open spaces become extremely useful.
They provide somewhere for displaced mud, soil and other material to go.
This is one of the reasons a dedicated Mud-Terrain tyre looks so dramatically different from an ordinary road tyre.
Why Do Mud-Terrain Tyres Need to Self-Clean?
Imagine driving your 4x4 into a deep muddy track.
The tread enters the mud and its grooves begin filling with material.
If that mud remains tightly packed between the blocks, the tyre gradually loses the very tread shape that was providing traction.
Instead of repeatedly presenting individual blocks, edges and voids to the terrain, the tread becomes increasingly clogged.
An effective off-road pattern therefore needs to shed material as the tyre rotates.
This is generally described as self-cleaning.
The requirement becomes increasingly important as you move from A/T through X/T and R/T towards a dedicated Mud-Terrain pattern.
Compare the RA1100 A/T with the much more aggressive RA3200 M/T and the difference is immediately apparent.
For a 4x4 tackling deep mud, wet fields, forestry tracks or heavily rutted terrain, that's a very different requirement from an SUV occasionally travelling along a gravel track.
Sipes – Those Tiny Cuts Aren't Cracks
Look carefully at an individual tread block and you'll often see much smaller cuts running across or into it.
These are called sipes.
They're different from the large grooves separating one tread block from another.
Sipes create additional edges within the surface of the block itself. These can help the tread interact with wet and slippery surfaces and influence how the block deforms as it passes through the contact patch.
You'll generally notice much greater use of fine tread features on tyres that also need significant road and mixed-weather ability.
This becomes particularly important when considering tyres for vehicles that don't live exclusively off-road.
A Ford Ranger, Toyota Hilux, Land Rover Defender or converted 4x4 van might spend Monday to Friday travelling on wet British roads before heading onto a muddy track at the weekend.
The tyre has to cope with both environments.

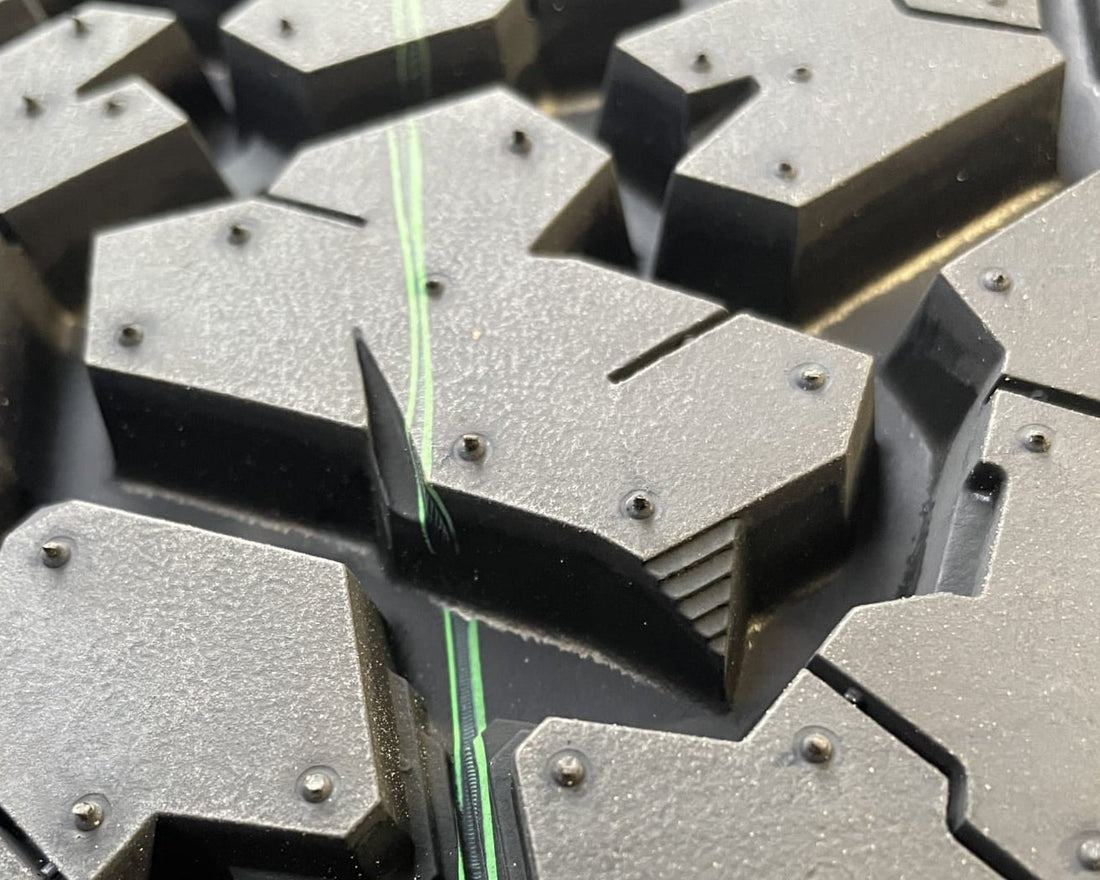

Biting Edges – Why Tread Block Shape Matters
Every corner, notch, sipe and edge within a tread pattern potentially creates another point at which the tyre can interact with the surface.
These are often referred to as biting edges.
This also explains why off-road tread blocks often aren't simple squares or rectangles.
Look closely and you'll find angles, steps, notches and irregular shapes.
They're creating additional geometry for the tyre to work with.
Shoulder Blocks – Where Tread Meets Sidewall
The shoulder is the outer portion of the tread where the main tread face begins transitioning towards the tyre's sidewall.
This area becomes increasingly interesting as tyres become more aggressive.
An All-Terrain needs useful shoulder traction without compromising its everyday road role.
Move towards more aggressive X/T, R/T and M/T patterns and you'll often see larger, more separated shoulder blocks with increasingly substantial edges.
This progressively open shoulder is one of the easiest visual clues that you're moving from a conventional All-Terrain towards a more serious off-road tyre.
Shoulder & Sidewall Lugs
On particularly aggressive off-road tyres, the tread pattern can appear to continue beyond the main tread face and towards the sidewall.
These chunky features are commonly referred to as shoulder lugs, sidewall lugs or similar manufacturer-specific terms.
They're not necessarily decorative.
When negotiating deep ruts and uneven terrain, a tyre isn't always sitting perfectly flat against the ground. The outer shoulder and upper sidewall can interact with surrounding terrain.
Aggressive shoulder features can therefore provide additional edges around the outer portion of the tyre and may also add protection in areas likely to contact rough terrain.
You'll generally see this type of feature become increasingly prominent as you move towards R/T and M/T tyres.
For a serious off-roader negotiating deep ruts, that's potentially useful.
For an SUV spending almost all its life on the motorway, considerably less so.
That's a good example of why the most aggressive-looking tyre isn't automatically the most appropriate tyre.
Stone Ejectors & Stone-Release Features
Gravel and rocky tracks create a different problem from mud.
Stones can become trapped between tread blocks.
Anyone who regularly drives a pickup, farm vehicle, off-road van or 4x4 on loose stone will probably have experienced this – sometimes followed by the familiar clicking sound once the vehicle returns to tarmac.
Some off-road tread patterns incorporate raised areas or specially shaped sections within their grooves intended to discourage stones from remaining deeply lodged within the tread.
These are commonly described as stone ejectors, stone rejectors or stone-release features.
Features like these are particularly relevant to vehicles regularly travelling across gravel, quarry tracks, forestry roads, construction sites and farm access tracks.
Groove Base Reinforcement – What's Happening at the Bottom?
The bottom of an off-road tyre's groove isn't necessarily just a flat area of rubber.
Depending upon the tread design, you may find raised sections, steps or other shaped features.
These can perform different functions depending upon the tyre design – from discouraging stones from becoming deeply embedded to influencing tread-block movement or adding support within the tread structure.
It's a useful reminder that tyre tread design isn't only about what you see when looking directly down onto the tyre.
The depth, shape and construction of the voids themselves matter too.
Tie Bars & Block Supports
Tread blocks aren't completely rigid.
Under acceleration, braking and cornering, rubber deforms as forces pass through the tyre's contact patch.
Very tall or heavily separated blocks can potentially move more than closely supported ones.
Some tread patterns therefore incorporate tie bars or supporting rubber structures between neighbouring blocks.
These can restrict excessive block movement and help support the tread structure.
Again, it's a balancing act.
An off-road tyre needs enough separation and flexibility for its tread to interact effectively with uneven terrain, while a tyre intended for regular road use also needs tread stability.
Tread Wear Indicators
Look down inside a tyre's main tread grooves and you'll find small raised bars positioned at intervals around the tyre.
These are tread wear indicators.
As tread wears away, the tread surface gradually approaches the level of these moulded indicators, providing a useful visual reference to tread wear.
Don't confuse them with stone ejectors or other raised features found deeper within an off-road tyre's grooves – they serve different purposes.
For an off-road tyre, remaining tread depth also affects more than appearance. The depth of the blocks and voids contributes to how an aggressive tread interacts with loose surfaces, so a heavily worn M/T isn't going to have the same physical tread geometry it possessed when new.
How Does Off-Road Tyre Tread Change from A/T to M/T?
This is where all those individual tread features begin making sense.
Rather than viewing A/T, X/T, R/T and M/T simply as four labels, think of them as different solutions to the compromises involved in using a vehicle on and off the road.
The progression is particularly easy to see within the Roadcruza range.
RA1100 A/T – All-Terrain
Roadcruza positioning: 50% on-road / 50% off-road
The Roadcruza RA1100 All-Terrain is aimed at drivers wanting genuine mixed-terrain ability without moving too far away from the requirements of everyday road driving.
Its tread is relatively dense compared with Roadcruza's more aggressive patterns while still providing substantial tread blocks and pronounced shoulders.
Roadcruza also highlights its cut-resistant compound and block design for rougher road and trail conditions. The range extends beyond traditional 4x4s and pickups to sizes applicable to vehicles such as VW Transporters and other commercial vehicles.
That makes this type of tyre particularly relevant to everyday 4x4s, pickups, working vehicles, SUVs venturing off tarmac, camper/adventure vans, gravel and forestry tracks, rural access and drivers still covering substantial road mileage.
Explore the Roadcruza RA1100 All-Terrain range.
RA7000 X/T – Cross Terrain / Hybrid
The Roadcruza RA7000 X/T occupies an interesting middle ground.
Roadcruza describes it as a Cross Terrain hybrid, intended to combine mixed-terrain off-road ability with versatile on-road and off-road handling.
That's important because there's a sizeable gap between a conventional All-Terrain tyre and a dedicated Mud-Terrain.
This type of tyre is therefore particularly interesting for modified SUVs, pickups, adventure vehicles, camper conversions, off-road vans, green-laning and drivers wanting a more assertive off-road tread without immediately jumping to a dedicated M/T.
Think of X/T as an aggressive evolution of the mixed-terrain idea.
Explore the Roadcruza RA7000 X/T Cross Terrain range.
RA8000 R/T – Rugged Terrain
Roadcruza positioning: 70% off-road / 30% on-road
Now we're moving much further towards off-road use.
The Roadcruza RA8000 Rugged Terrain is positioned as an A/T–M/T hybrid designed around approximately 70% off-road and 30% on-road use.
Visually, the difference is substantial. The tread becomes more open and the shoulder treatment considerably more aggressive than a conventional A/T.
This makes the R/T category particularly interesting for vehicles genuinely spending significant amounts of time away from tarmac but which still have to drive home afterwards: heavily used 4x4s, working pickups, farm and utility vehicles, overlanders, forestry vehicles and modified Defenders, Rangers, Hilux's and similar 4x4s.
Explore the Roadcruza RA8000 Rugged Terrain range.
RA3200 M/T – Mud Terrain
Roadcruza positioning: 80% off-road / 20% on-road
At the aggressive end of the Roadcruza range sits the Roadcruza RA3200 Mud Terrain.
This is where priorities change significantly.
Roadcruza positions the RA3200 for approximately 80% off-road / 20% on-road use, aimed towards demanding muddy lanes and off-road/overlanding environments.
Its large, widely separated tread elements create a much more open pattern than the RA1100. That's the type of geometry required when clearing loose material and maintaining substantial tread edges becomes a major priority.
This is much more specialised territory, intended for vehicles genuinely tackling deep mud, heavily rutted tracks, challenging off-road sites, forestry, agricultural terrain and serious recreational off-roading.
The trade-off is equally important: the characteristics that make an M/T useful in demanding mud aren't necessarily the characteristics you'd prioritise for a vehicle spending almost all its life on tarmac.
Explore the Roadcruza RA3200 Mud Terrain range.
A/T vs X/T vs R/T vs M/T – Which Do You Actually Need?
The most aggressive-looking tyre isn't necessarily the best off-road tyre for your vehicle.
The better question is:
Where does your vehicle actually spend its time?
An SUV spending most of its life commuting but occasionally needing to reach a campsite along a gravel or muddy track has very different requirements from a Defender regularly tackling deep ruts.
Likewise, a working Ford Ranger travelling between building sites may need something different again.
A useful way of thinking about the Roadcruza range is:
RA1100 A/T
50% road / 50% off-road
Balanced mixed-terrain use
↓
RA7000 X/T
Cross Terrain / Hybrid
More aggressive mixed-terrain approach
↓
RA8000 R/T
30% road / 70% off-road
Rugged Terrain for significantly greater off-road use
↓
RA3200 M/T
20% road / 80% off-road
Mud Terrain with the greatest off-road emphasis
These are the usage positions currently given by Roadcruza for the RA1100, RA8000 and RA3200, with the RA7000 occupying the Cross Terrain/hybrid position between them.
Off-Road Tyres Aren't Just for Traditional 4x4s
There's another reason understanding tread design has become increasingly useful.
Off-road tyres are no longer confined to traditional Land Rovers and dedicated off-roaders.
Pickups such as the Ford Ranger, Toyota Hilux, Isuzu D-Max and Mitsubishi L200 routinely combine everyday transport with work and recreational off-road use.
Adventure and camper conversions have also made All-Terrain and mixed-terrain tyres interesting to VW Transporter and other van owners who want additional ability on campsites, forestry tracks, wet grass and unmade roads. Roadcruza's own RA1100 range specifically includes traditional 4x4, pickup and commercial-vehicle applications
Then there's the modern SUV.
Many SUV owners will never tackle a dedicated off-road course, but that doesn't mean their vehicles never leave tarmac.
Camping, towing, rural access, shooting, fishing, equestrian use, festivals, farm tracks and outdoor sports can all put a vehicle onto surfaces where tyre requirements begin to change.
For those drivers, the answer doesn't automatically have to be a huge Mud-Terrain.
Understanding the differences between A/T, X/T, R/T and M/T allows you to choose the degree of off-road tread appropriate to the way the vehicle is actually used.
How to Read an Off-Road Tyre Tread
Next time you're comparing two 4x4 tyres, don't just look at how aggressive they appear.
Look at the tread blocks. Are they relatively small and tightly arranged, or huge and widely separated?
Look at the voids. How much open space exists for mud and debris to escape?
Look for sipes and smaller cuts within the individual blocks.
Study the shoulders. Are they relatively restrained, or does the tread become increasingly open and aggressive towards the sidewall?
Look down inside the grooves. Are there raised or shaped features?
Look at the edges of the blocks. Are they straight, stepped, angular or notched?
Every one of these details provides another clue about what that tyre has been designed to do.
Once you learn how to read the tread, the differences between an All-Terrain, Cross/Extreme-Terrain, Rugged-Terrain and Mud-Terrain tyre become considerably easier to understand.
More importantly, it becomes easier to choose the right tyre for your 4x4, pickup, off-road van or SUV – and the places you actually intend to take it.
